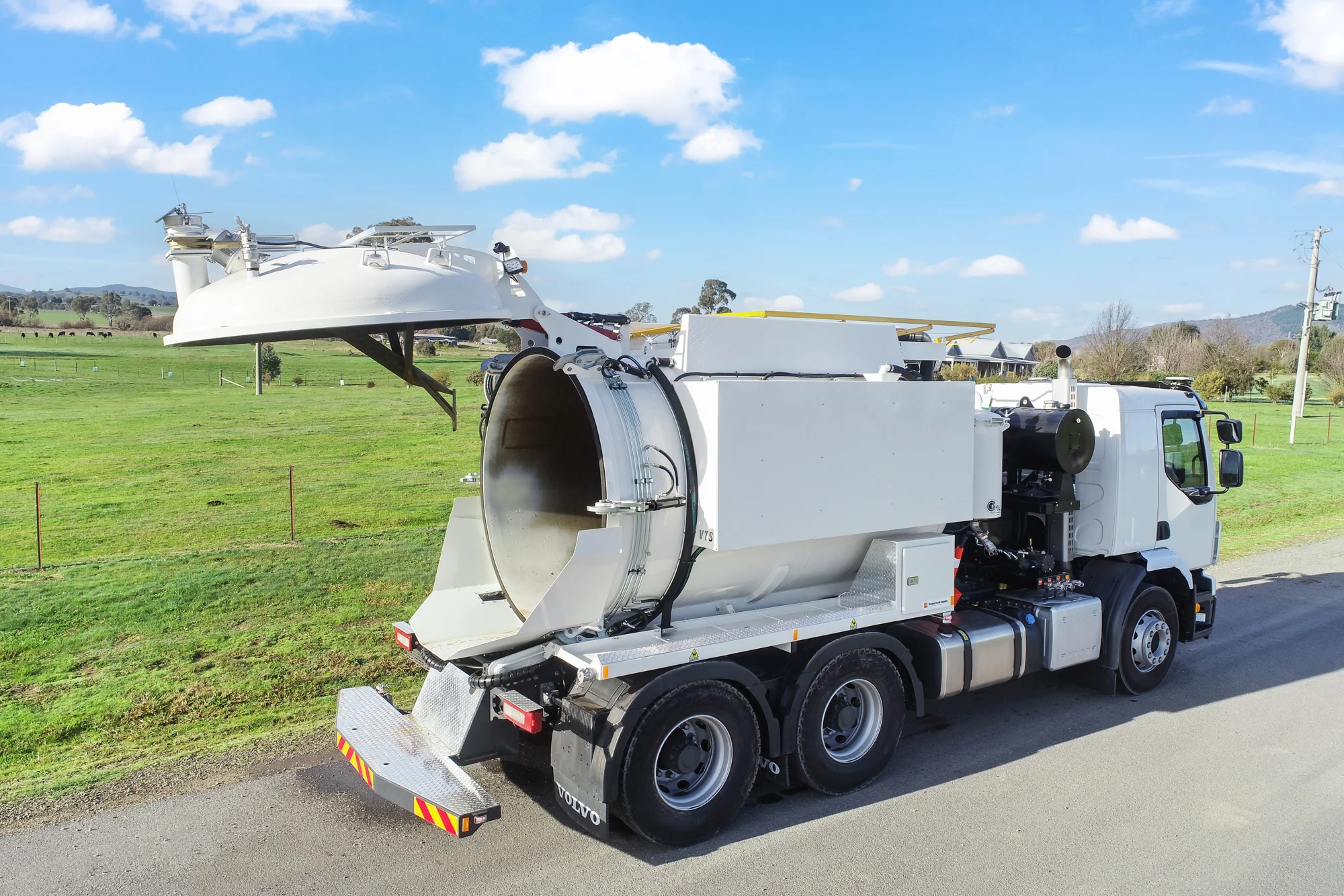

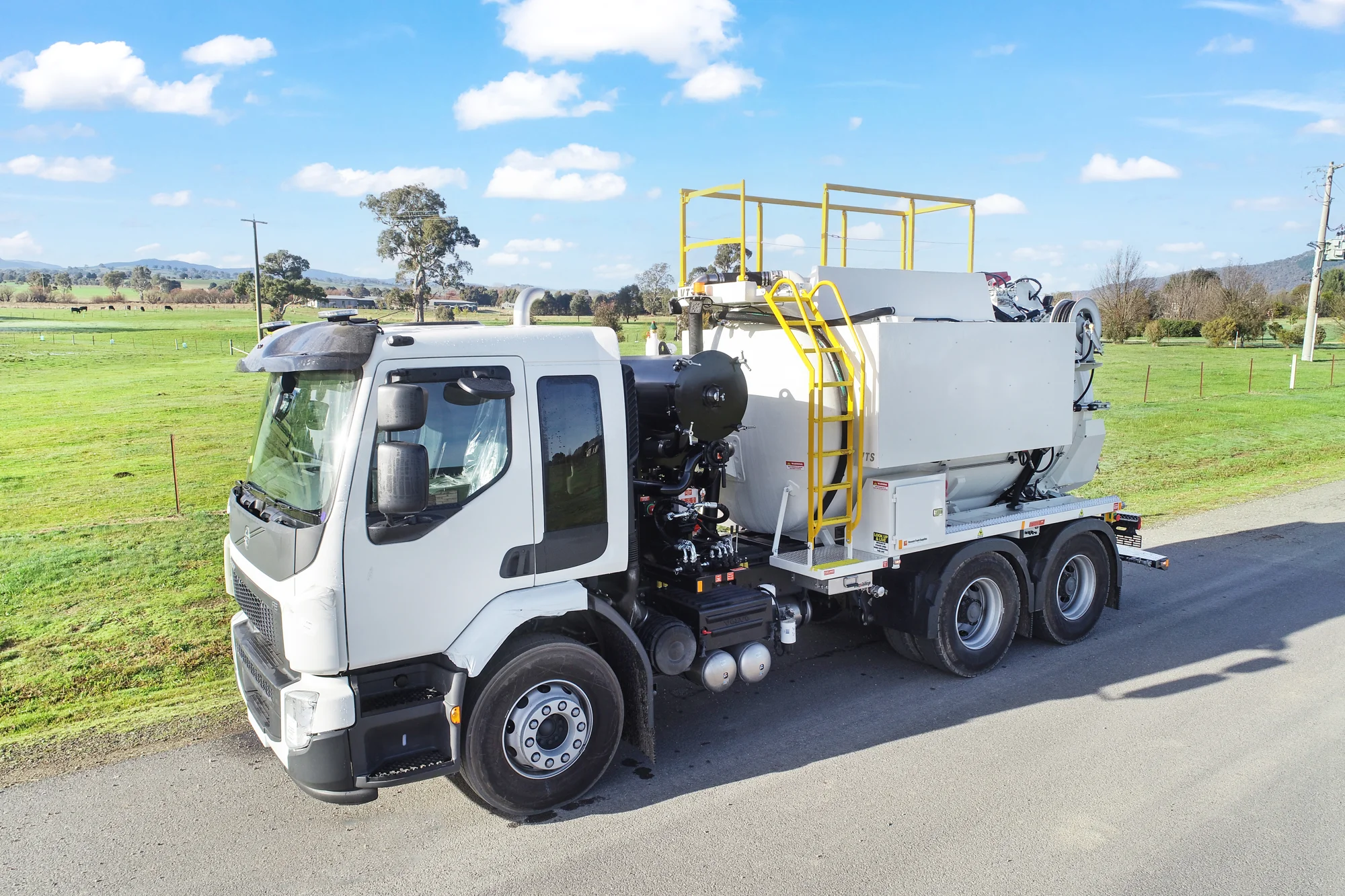

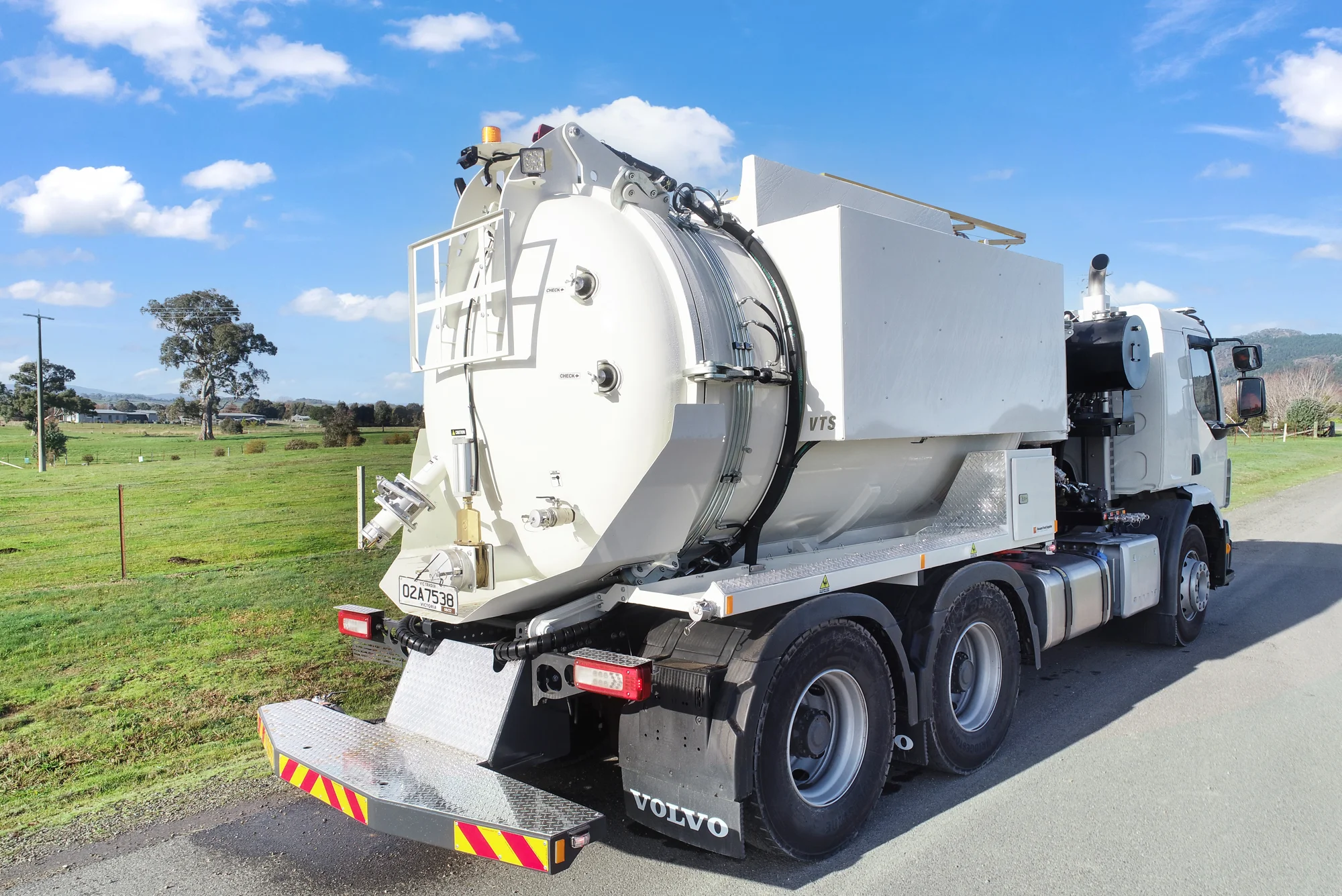

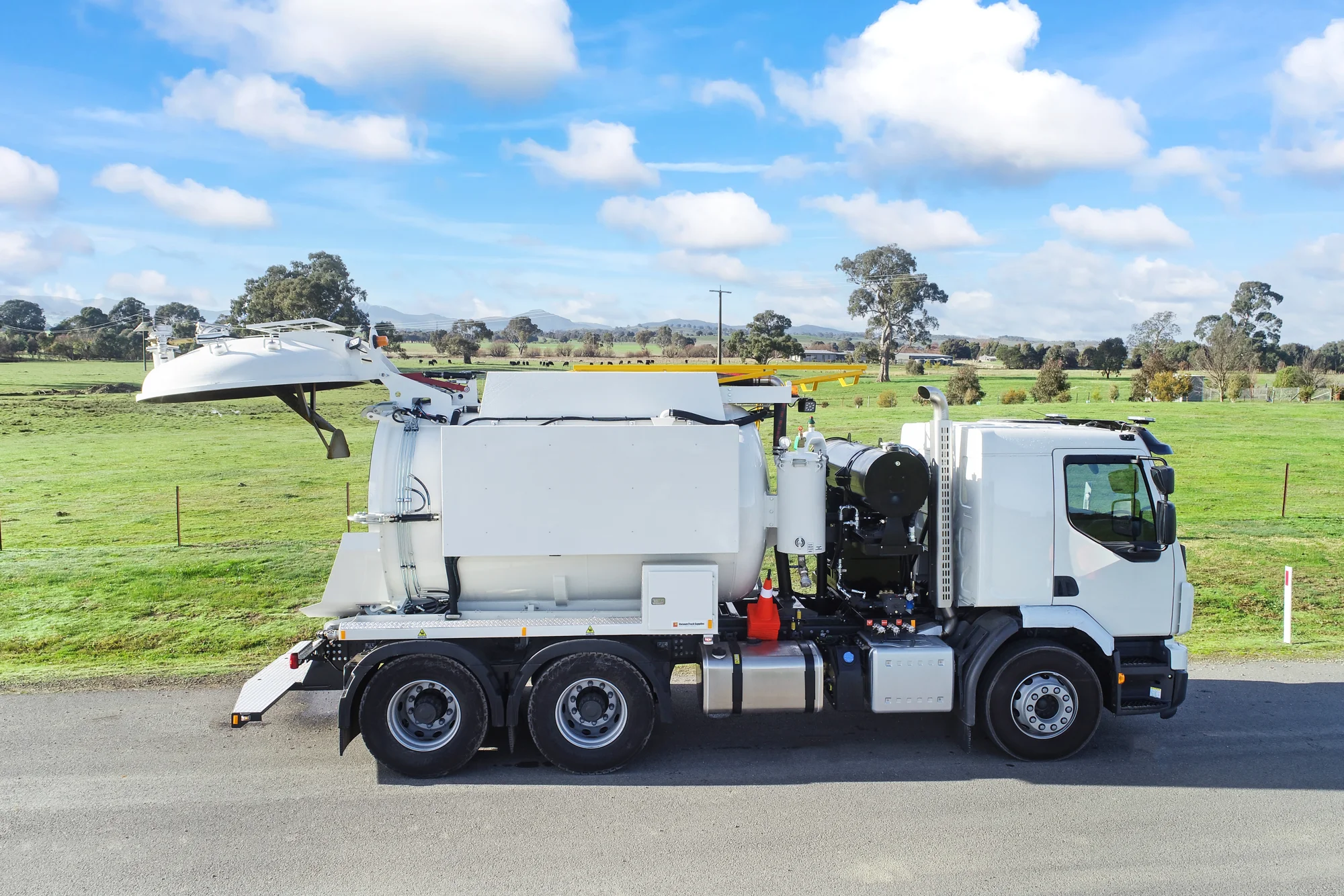

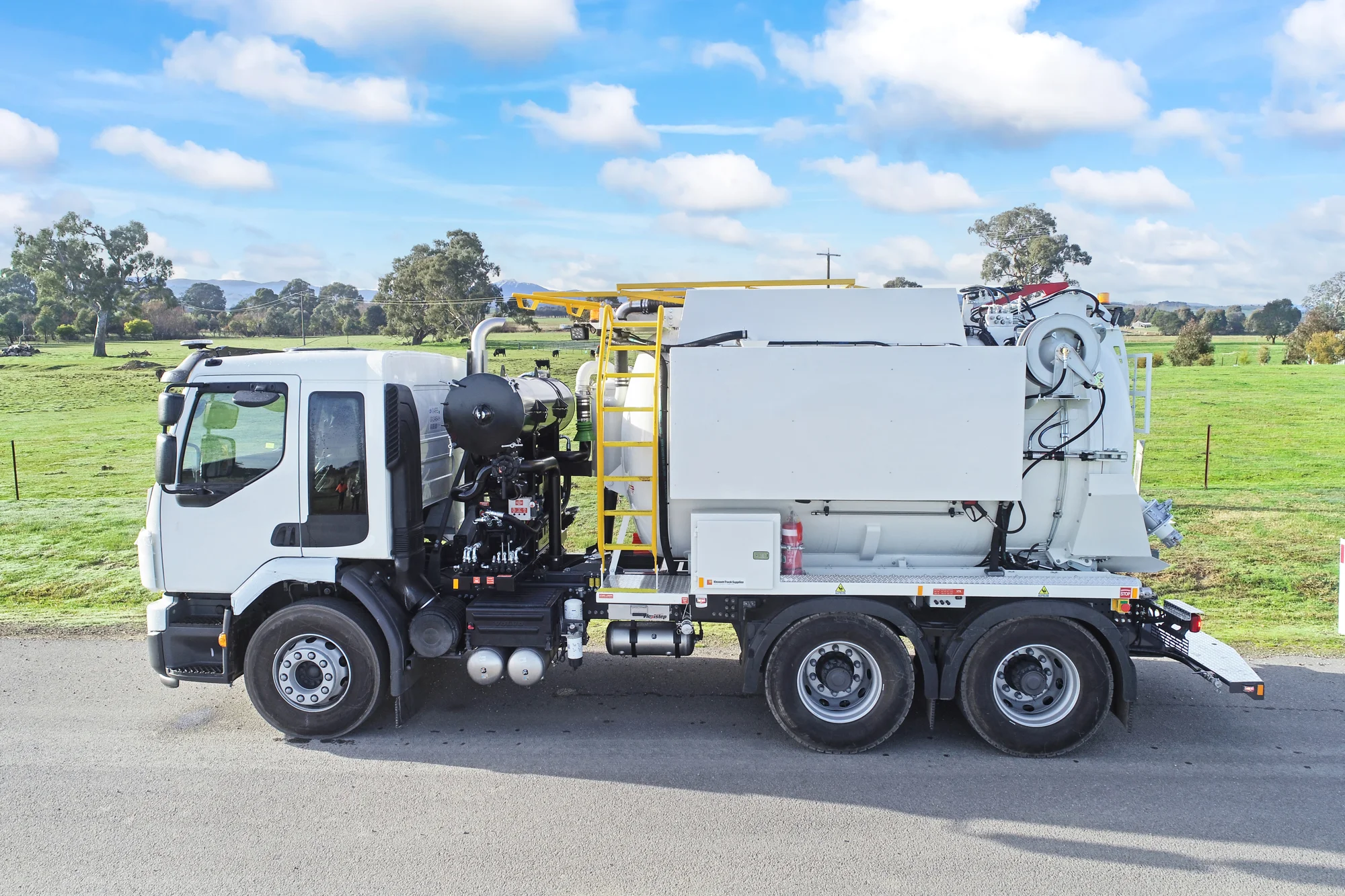

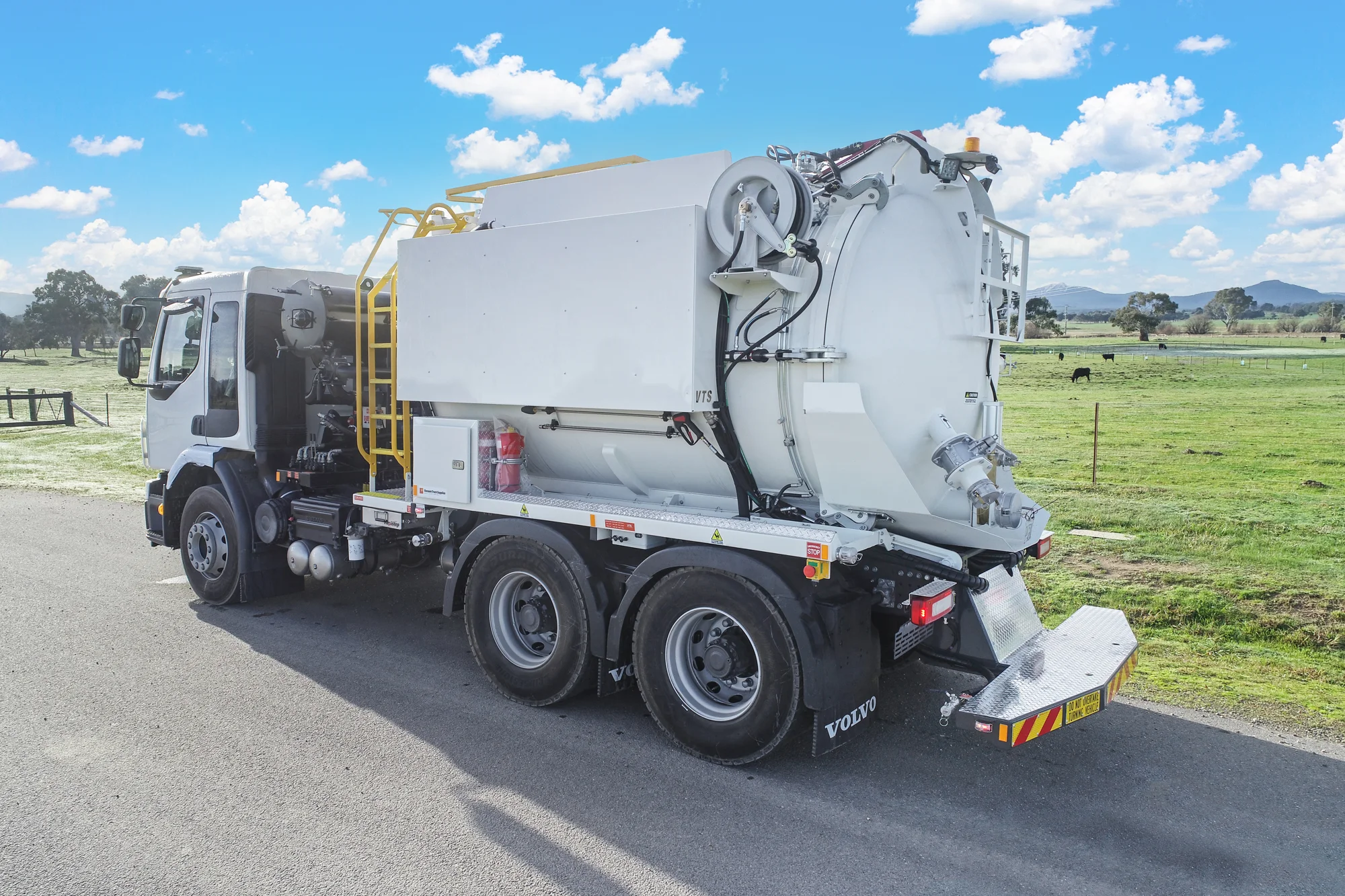

MudVac

The MudVac features a stainless steel VTS tower, liquid ring vacuum system. This provides a high tolerance to carryover as well as a quiet and powerful combination of airflow and vacuum. Capable of handling everything from septic tanks to drill mud and even minor service locating.

Tailored For Your Operations

Rugged Construction
Simple operation
Easy to Maintain
Fit for Purpose

Technical Specifications

The MudVac 10000 is a tough hire solution for customers dealing with mud, slurry, sludge and wet waste recovery. It is well suited to civil, drilling, construction, industrial and site clean-up work where crews need a practical unit that can handle messy material without turning the job into a long day of headaches.

For hire customers, the MudVac 10000 helps add serious recovery capacity when project demand increases, equipment is down or a short-term job needs the right gear fast. Its simple operation, strong vacuum performance and full-opening rear door help crews load, recover, discharge and clean out more efficiently, saving time on site and keeping the job moving.

10,000
6x4
Volvo
8mm Mild Steel
AS1210 CL3 and AS4343 compliant barrel

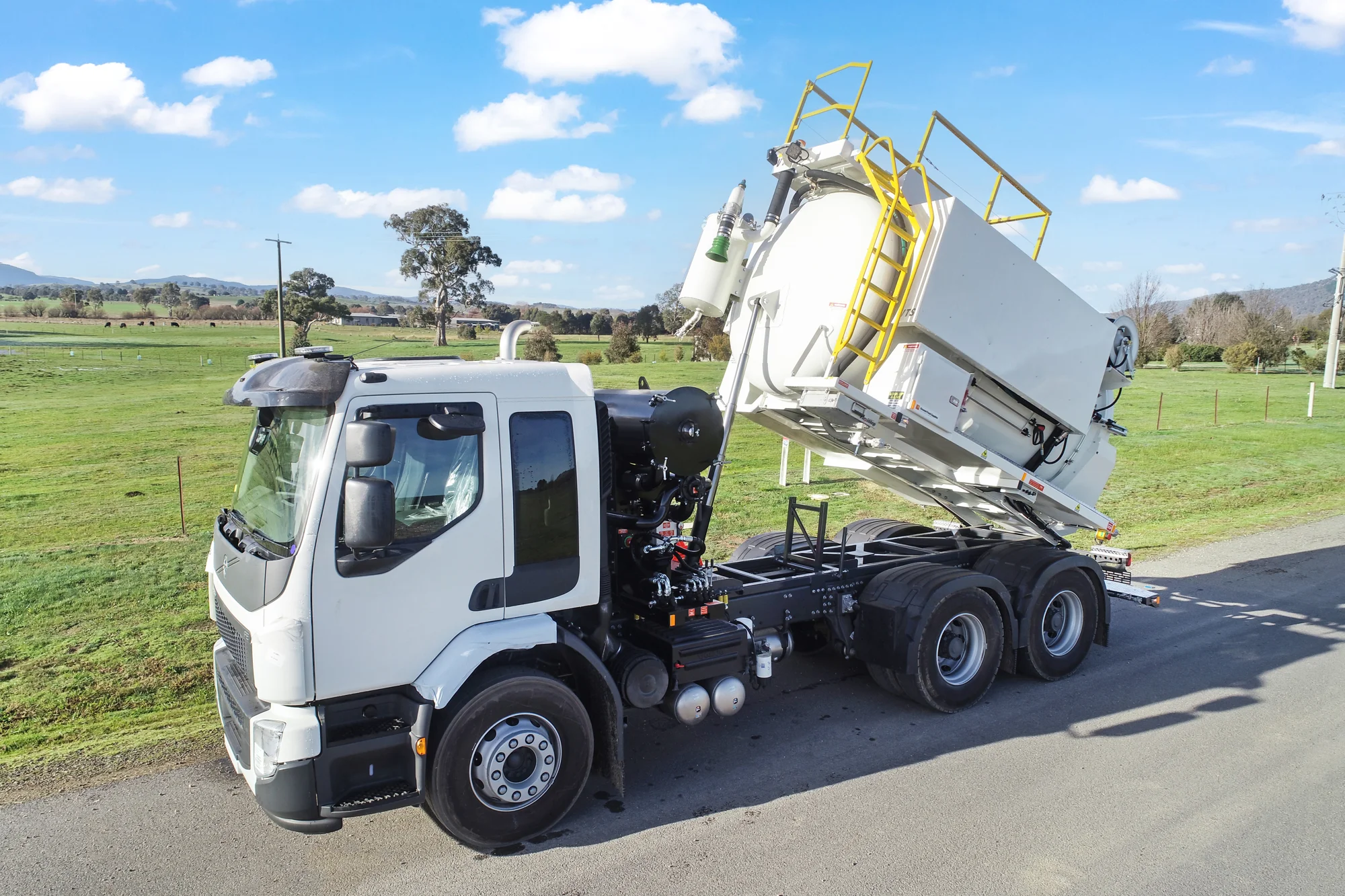

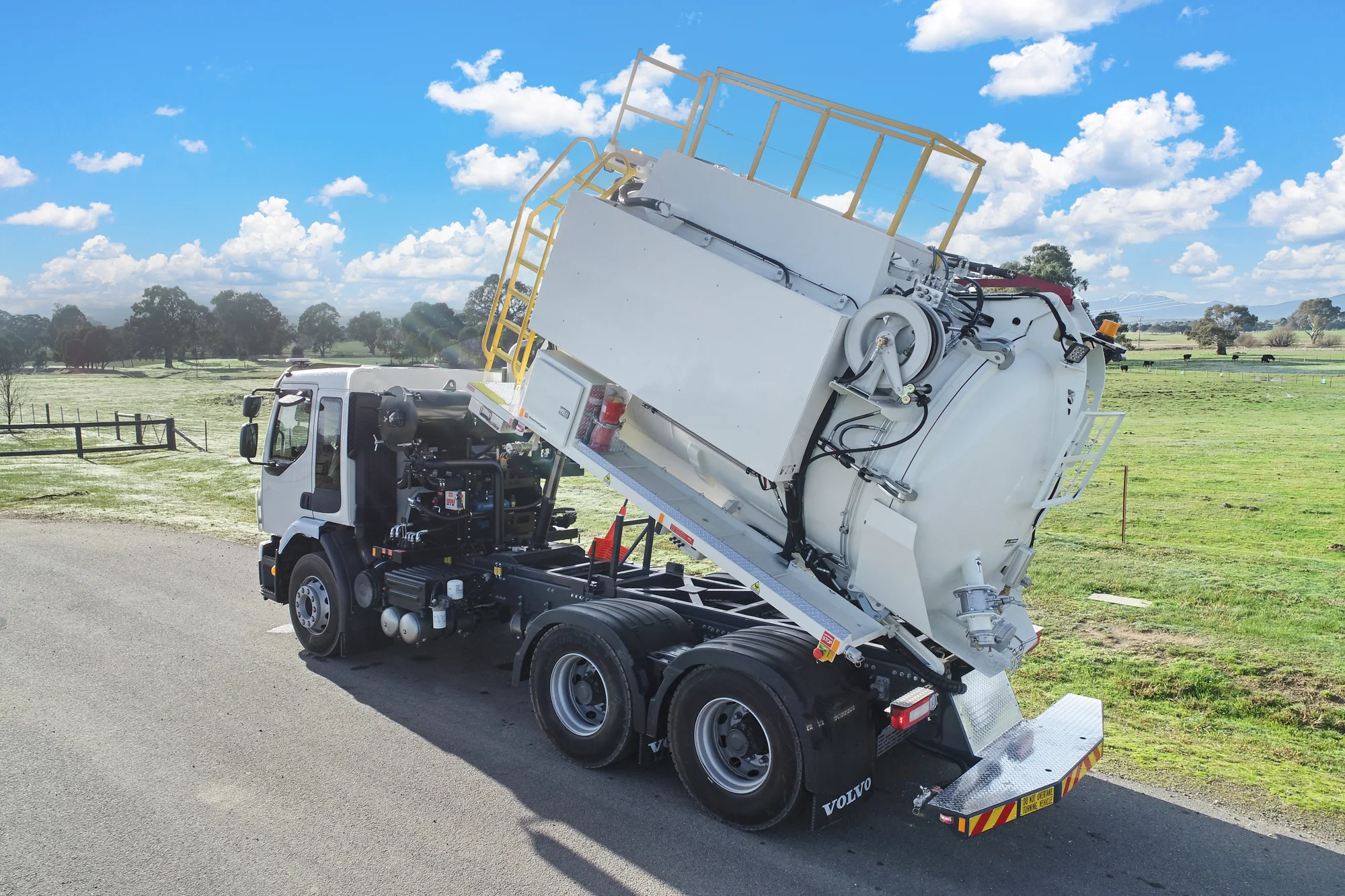

Hydraulic tipping and full rear door
1,000 m3/h - 600 CFM liquid ring vacuum pump, hydraulically driven
1,200 litres of fresh water with HP Water Pump
Vac tested to -101kpa, pressure tested to 100kpa
Fully rebuildable Molex inlet valve
Stainless steel separator and manifolding
Volvo FE 350 HP 6x4 with I-Shift
Rear airbag suspension
