DrainVac

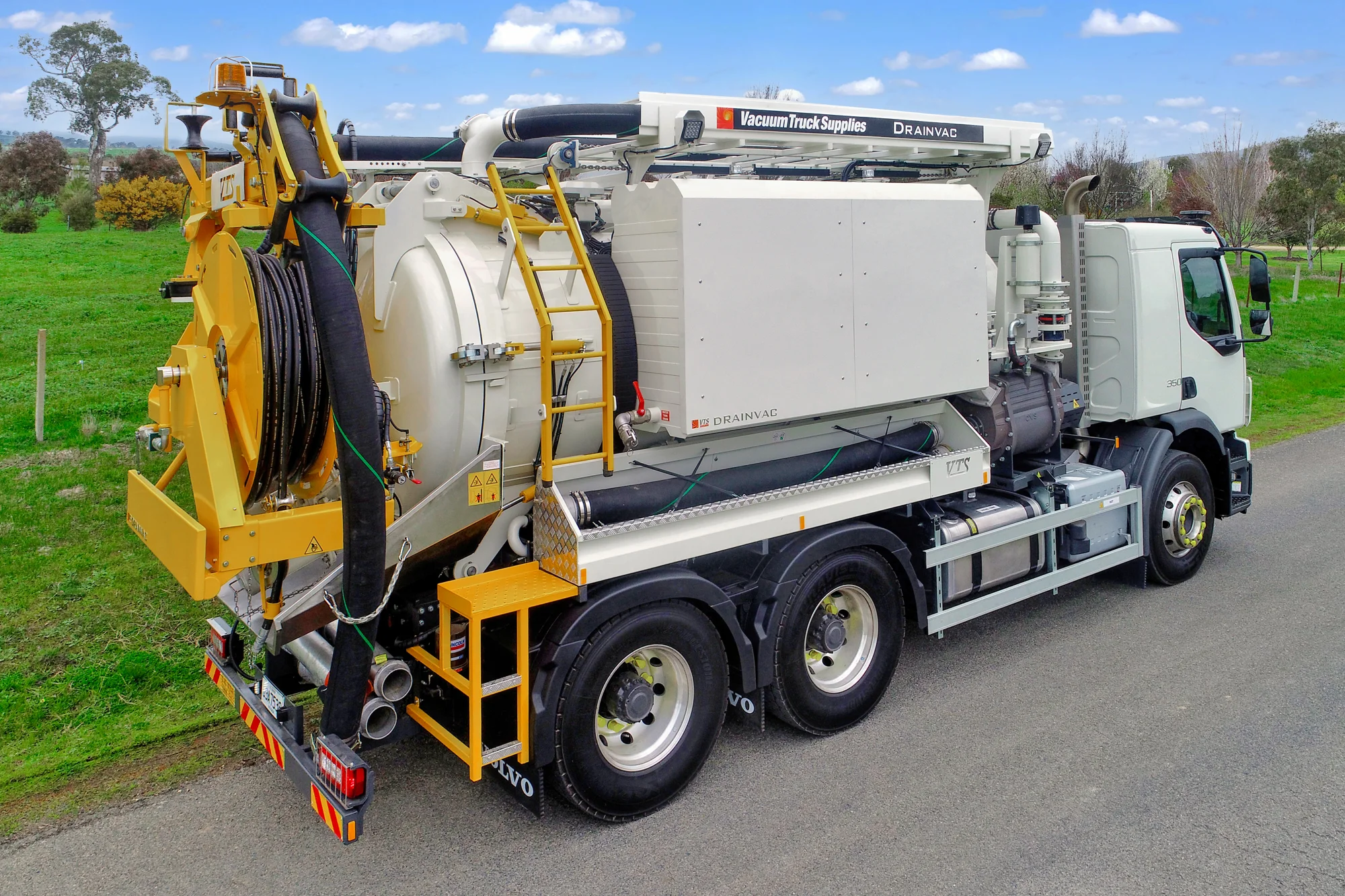

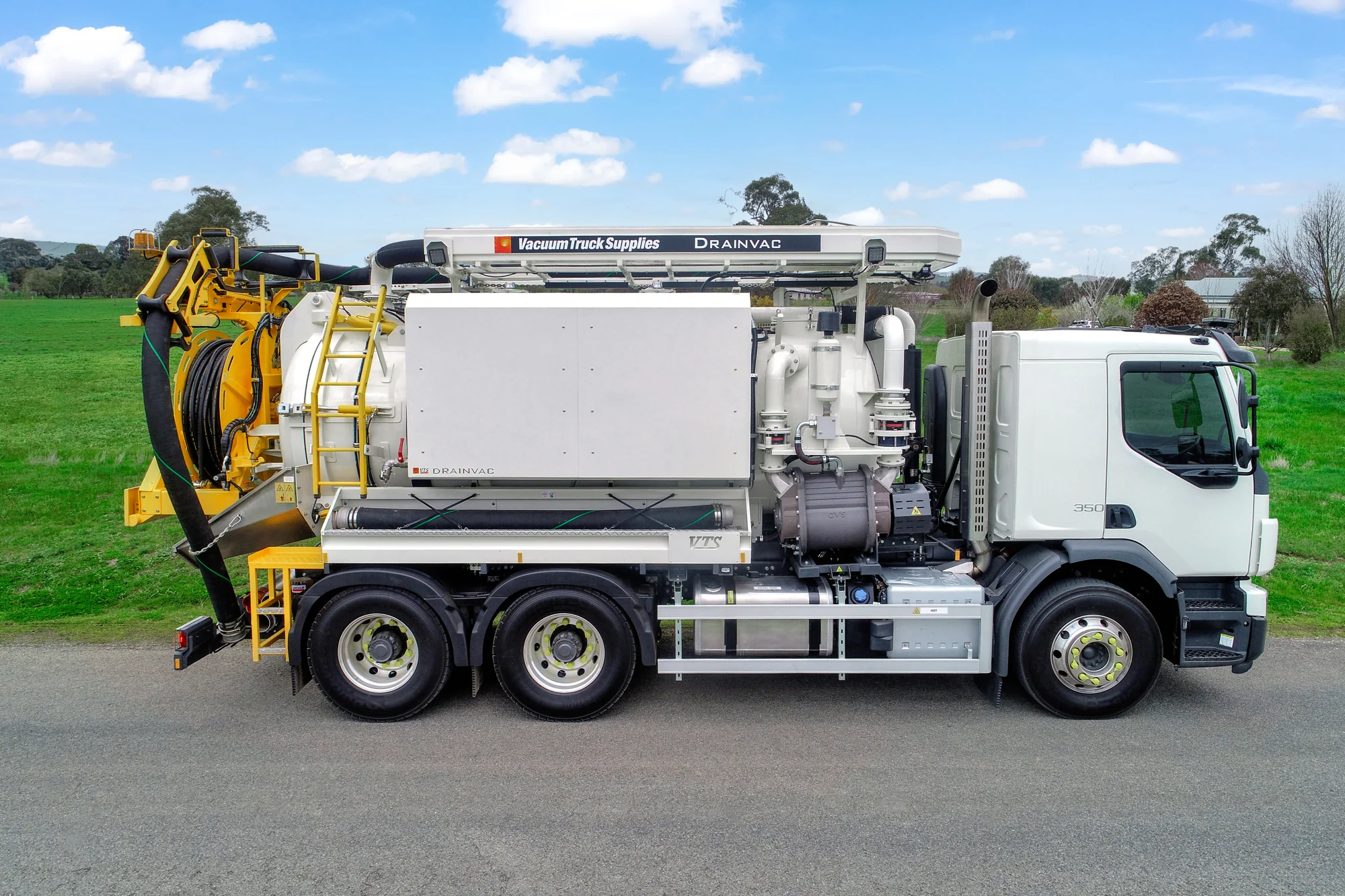

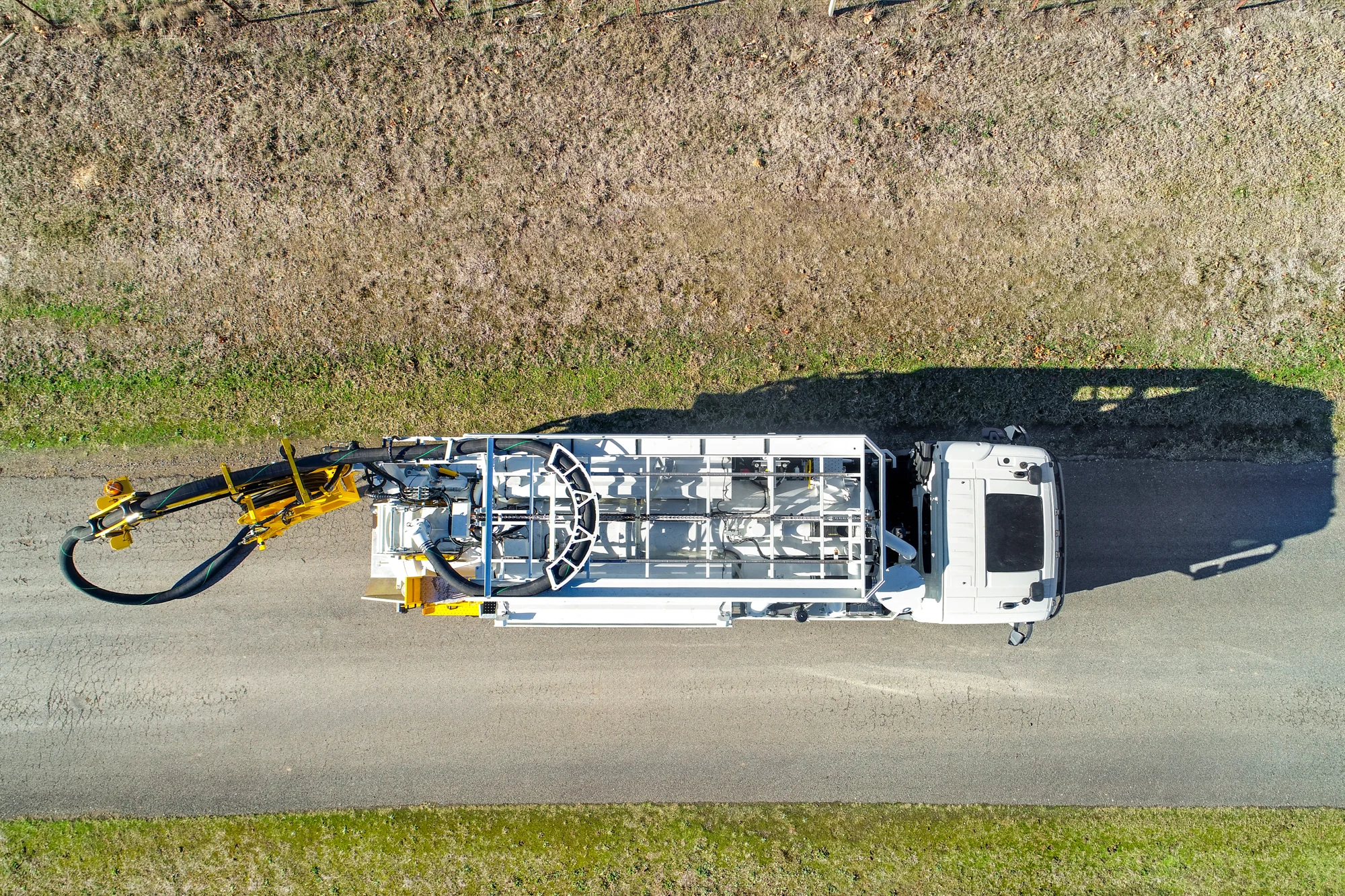

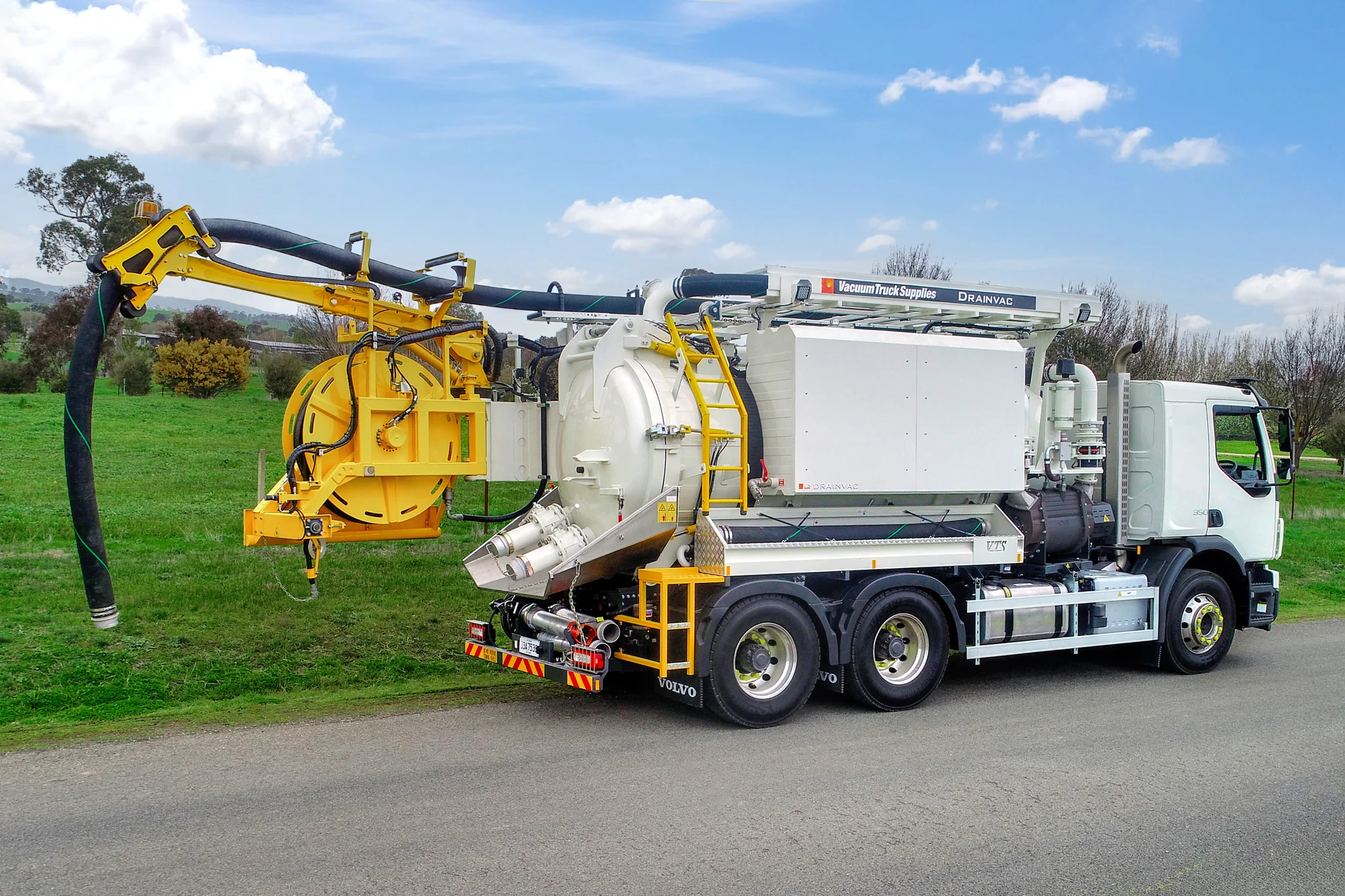

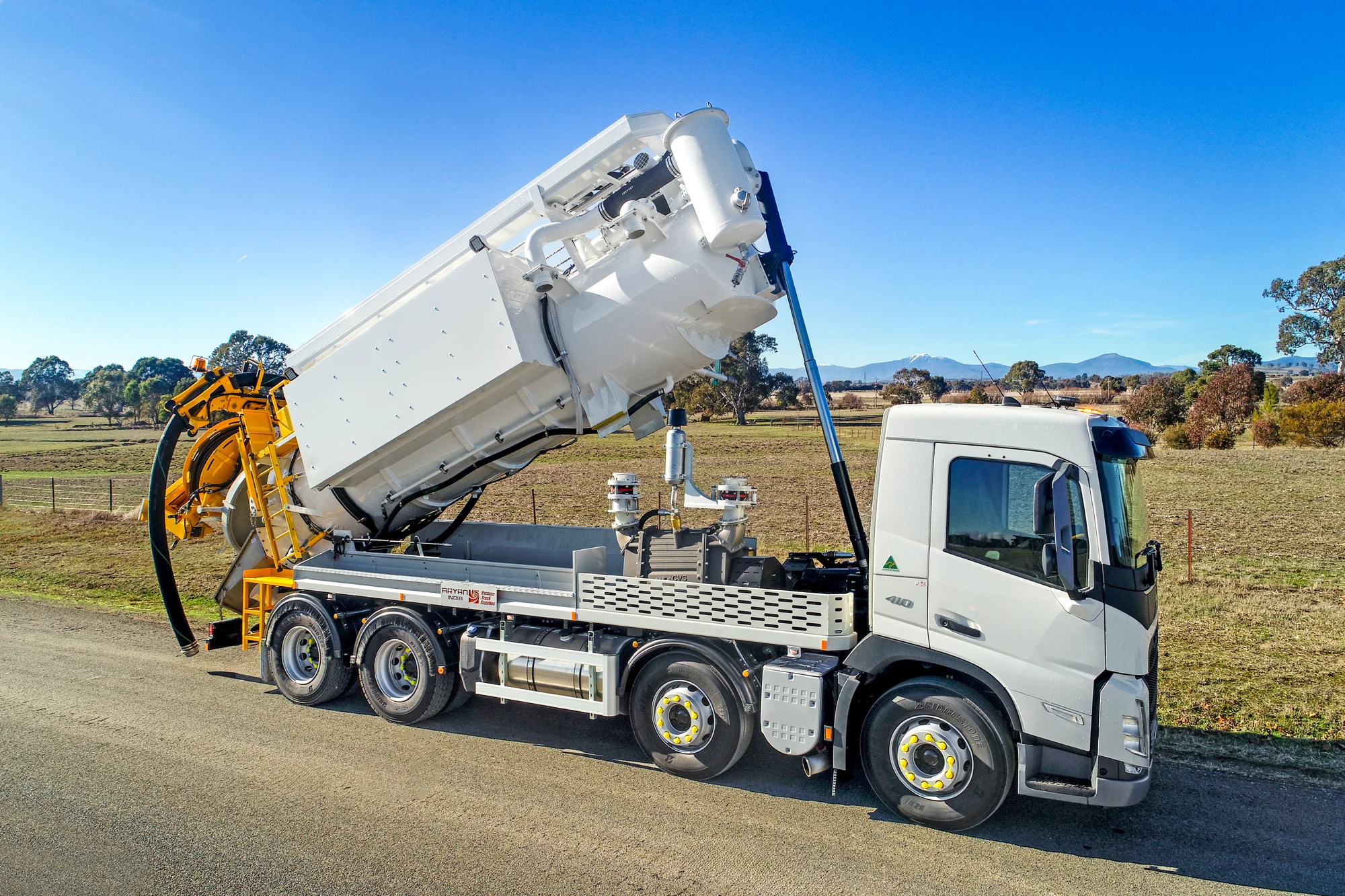

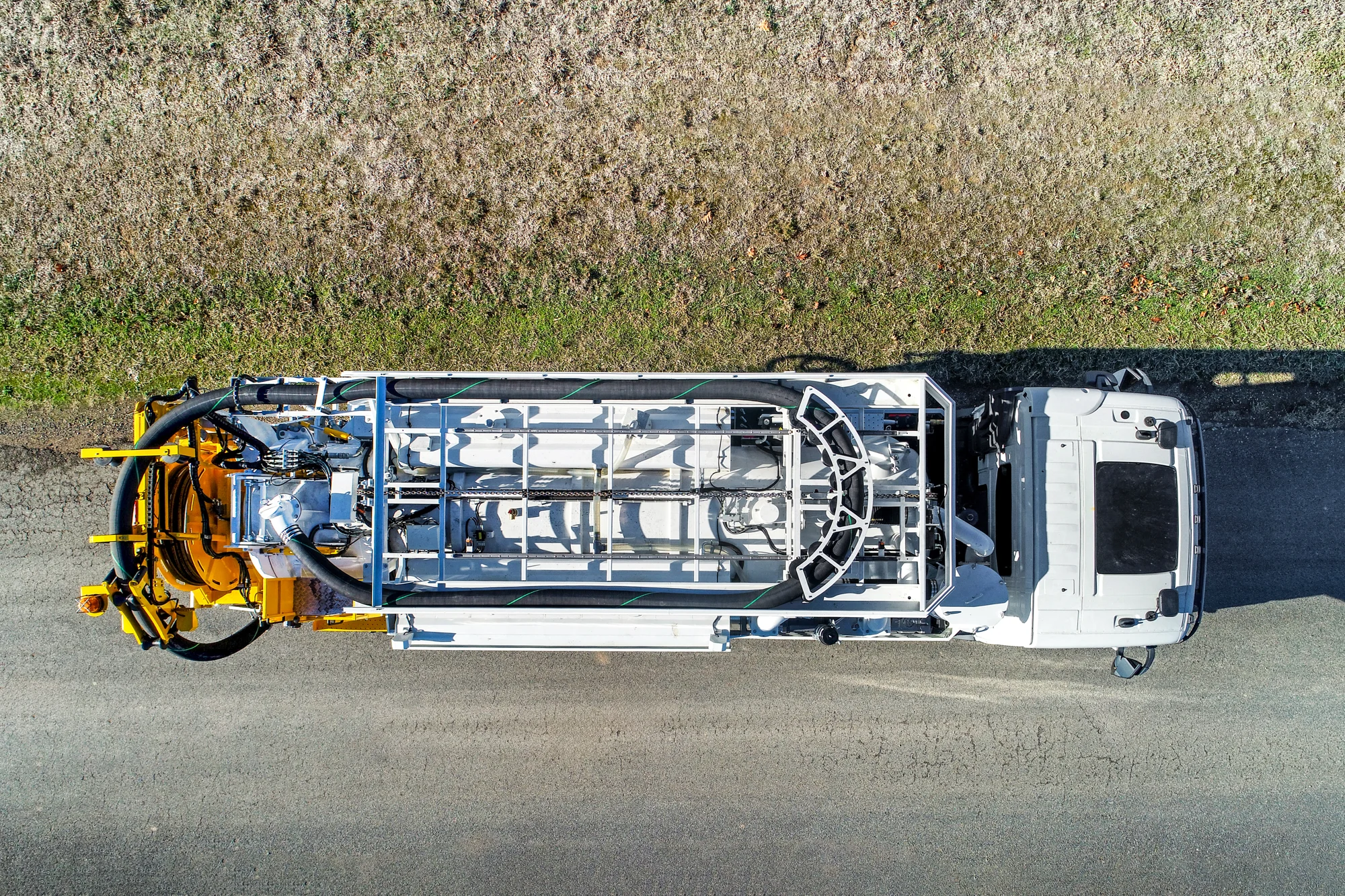

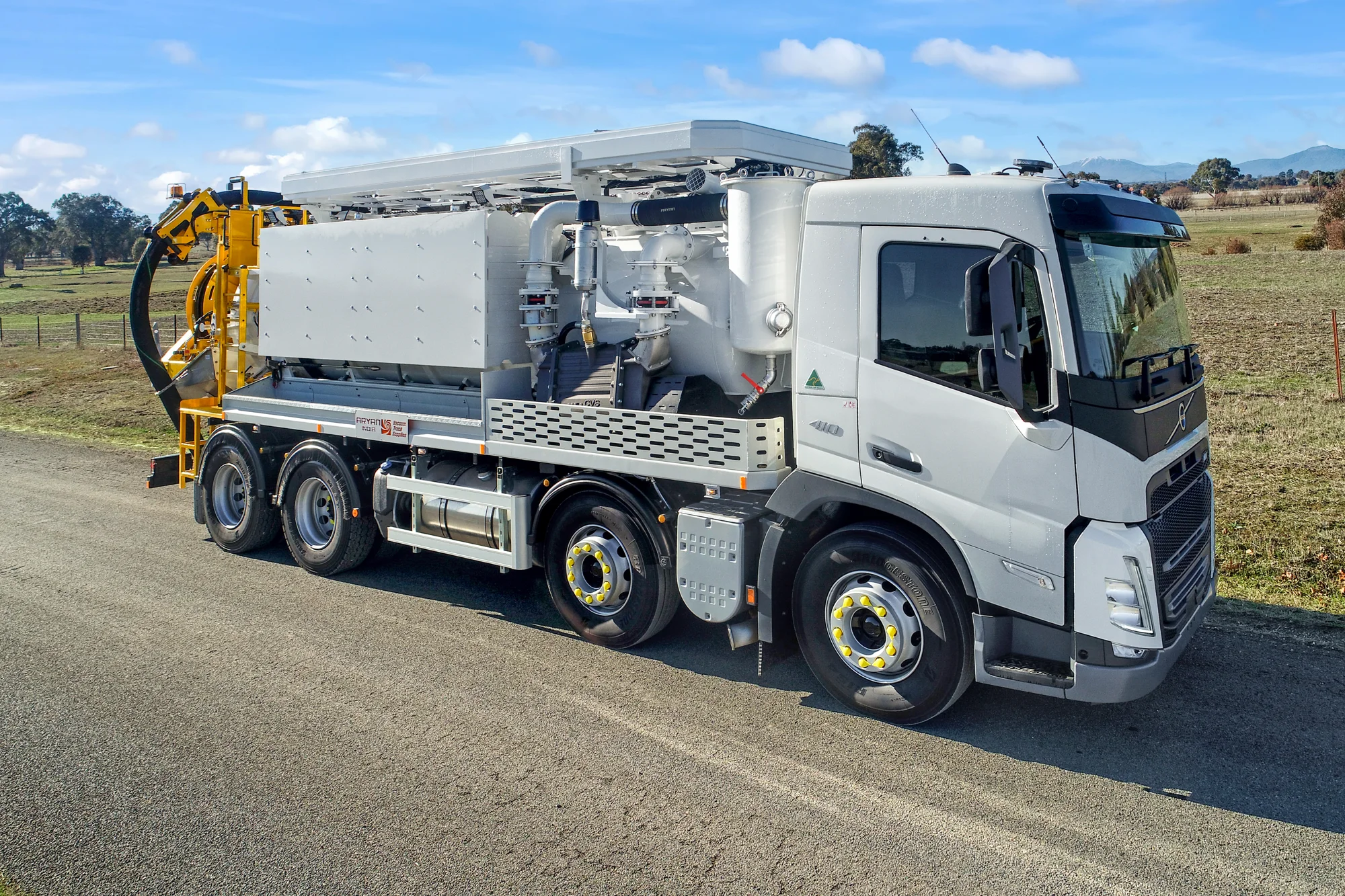

The DrainVac is a combination hydro excavation and drain cleaning truck designed specifically for Australian conditions. It comes with the VTS’ legendary robust construction and engineering for simplicity to operate and maintain.

Tailored For Your Operations

Proven Performance
Rugged Construction
Simple operation
Easy to Maintain
Fit for Purpose

Technical Specifications

The DrainVac 7000 is a versatile hire option for businesses needing drain cleaning, hydro excavation and vacuum recovery in one practical unit. It is well suited to blocked drains, service locating, slurry recovery and site clean-up, helping crews handle a wider range of jobs without needing multiple pieces of equipment on site.

For hire customers, the DrainVac 7000 offers the flexibility to respond quickly when workloads increase, contracts change or an urgent job lands in the diary. Its simple controls, practical layout and efficient setup help operators get working sooner, reduce wasted time and keep the job moving with less fuss.

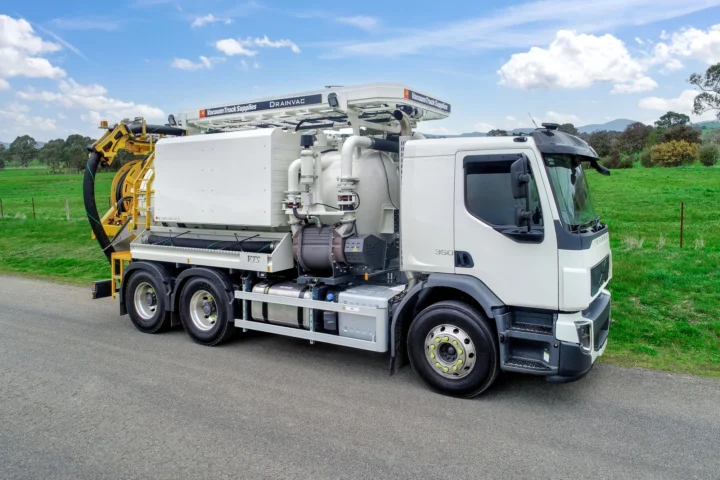

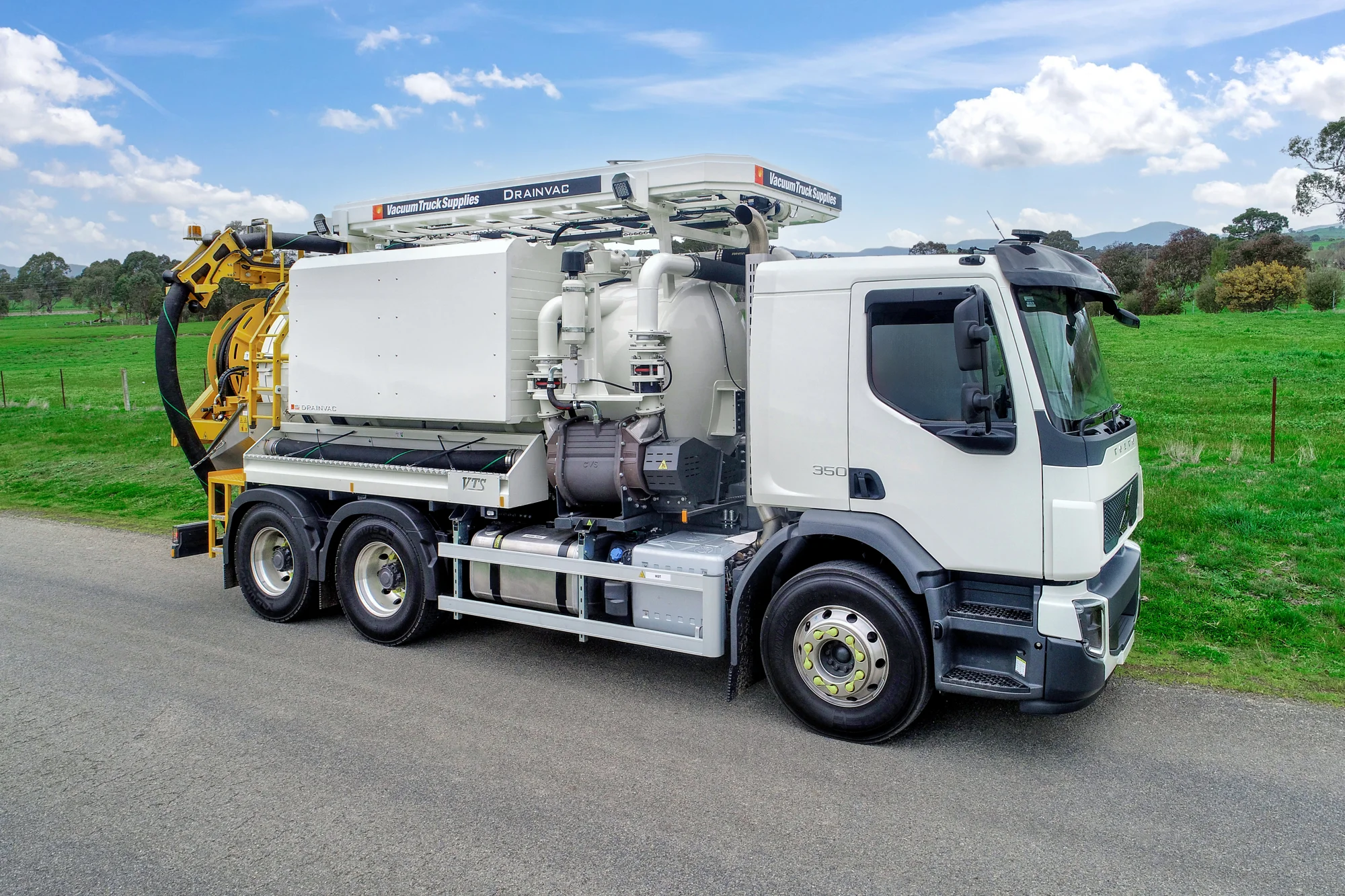

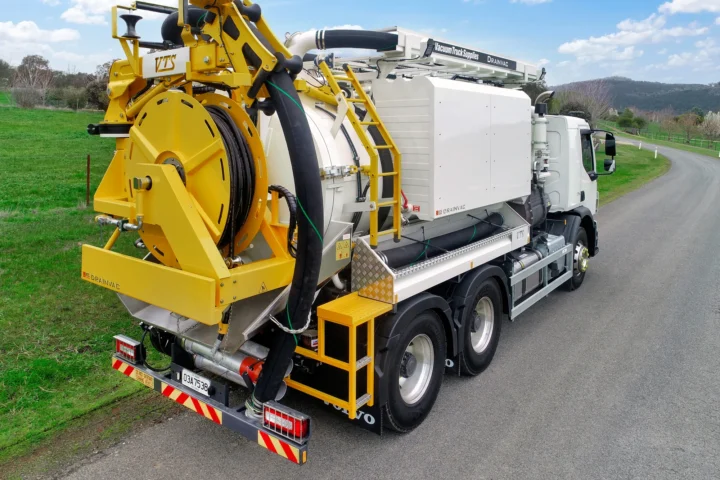

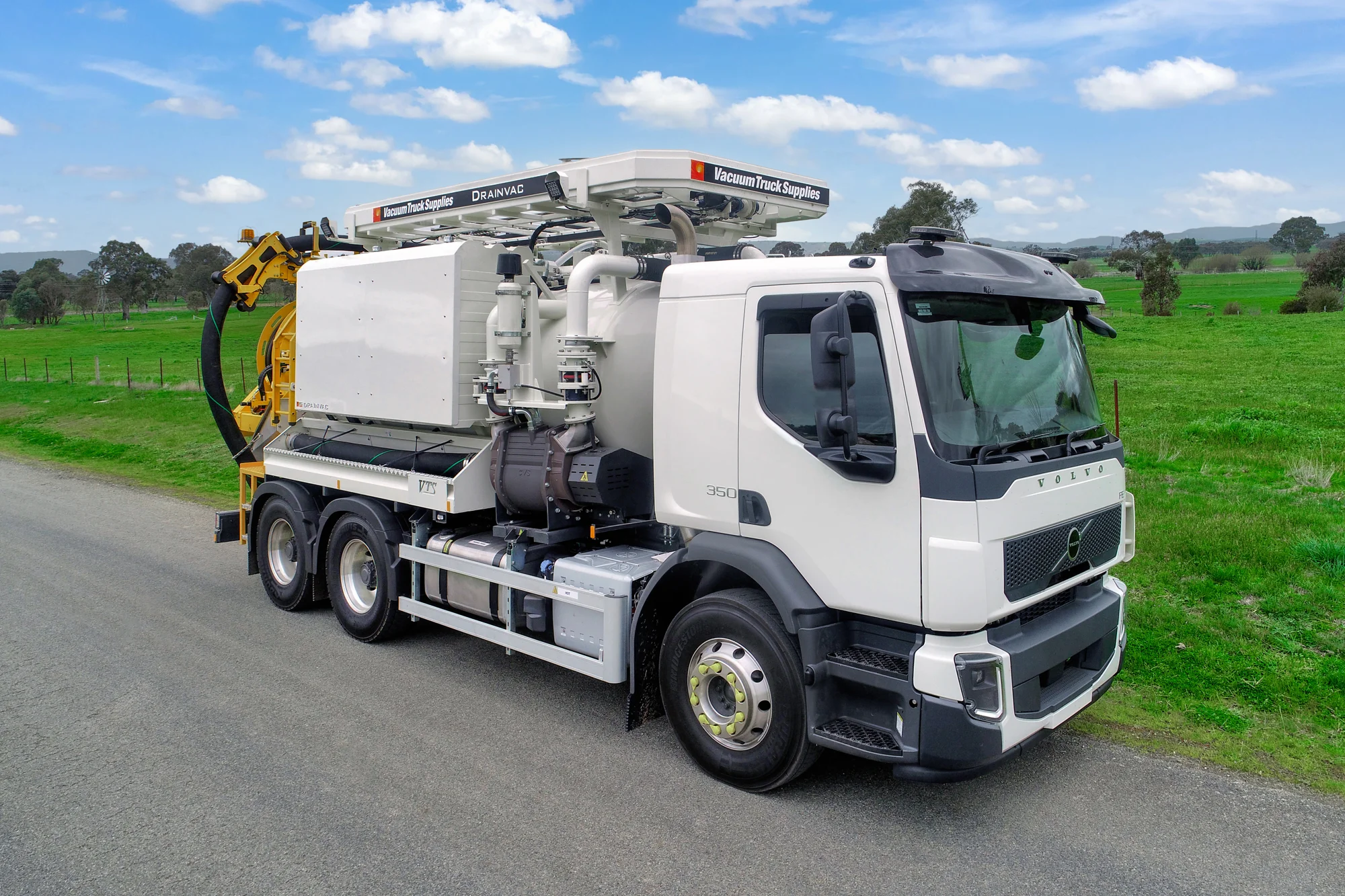

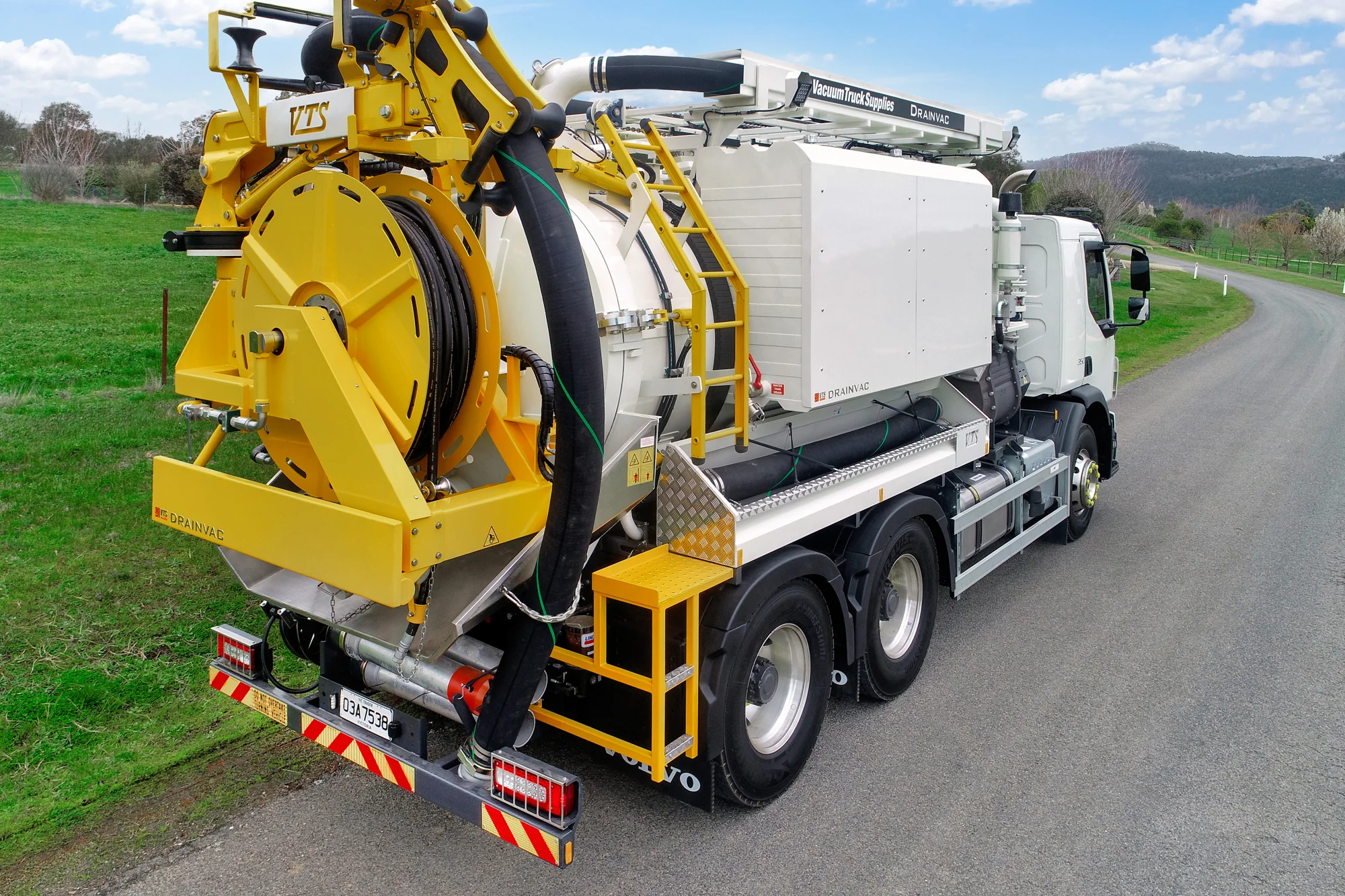

  • DrainVac 7000
    7,000L Sludge - 3,500L Water
    6x4
    Volvo FE 350HP 6x4 with I-Shift
    3,050 m3/h - 1,800 CFM CVS liquid ring vacuum pump
    Fully hydraulic 150mm suction boom
    Pratissoli Drain cleaning pump 270lpm/155bar, 25mm 180m hydraulic drive hose reel.
    5mm 304 stainless steel

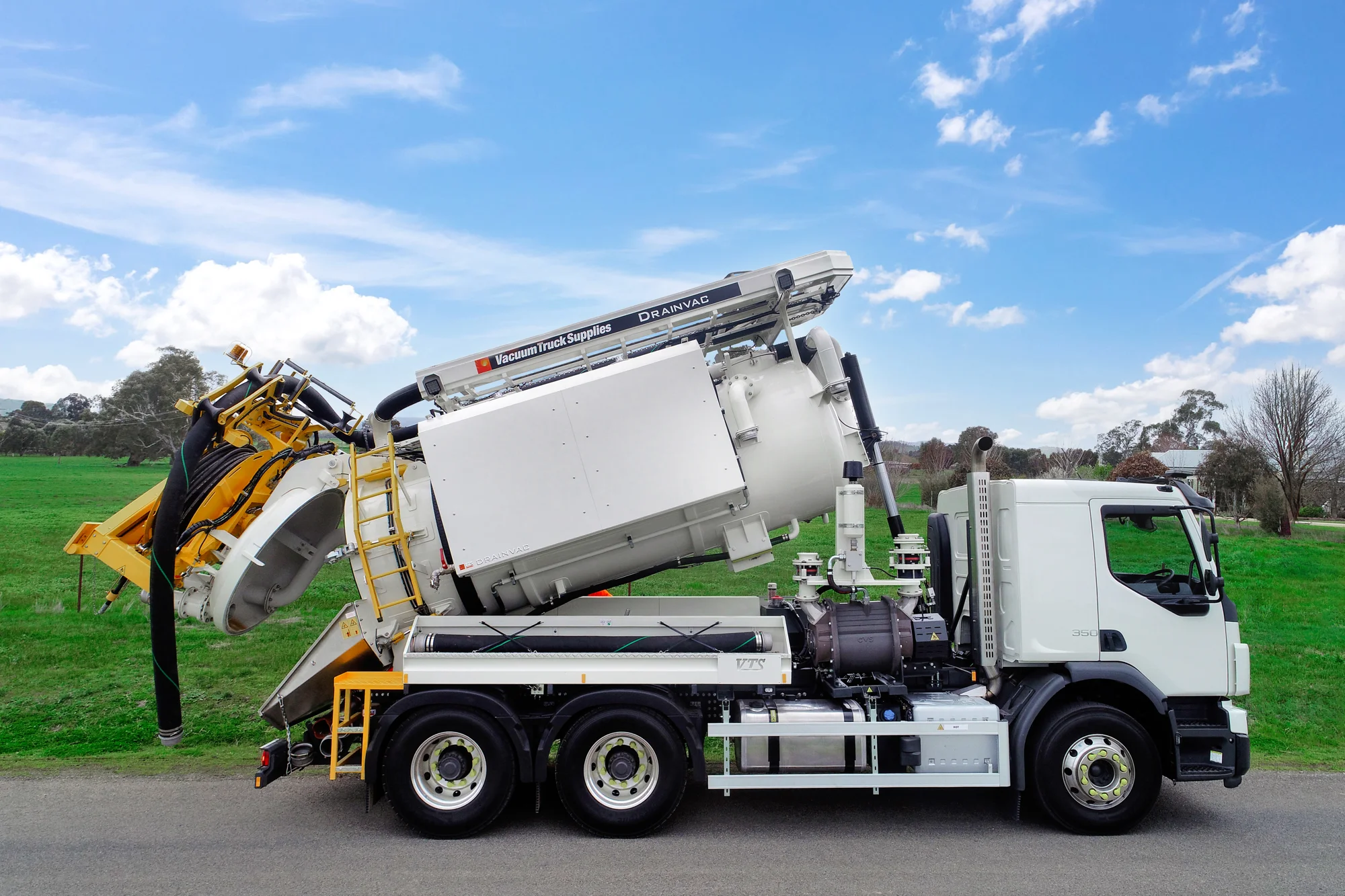

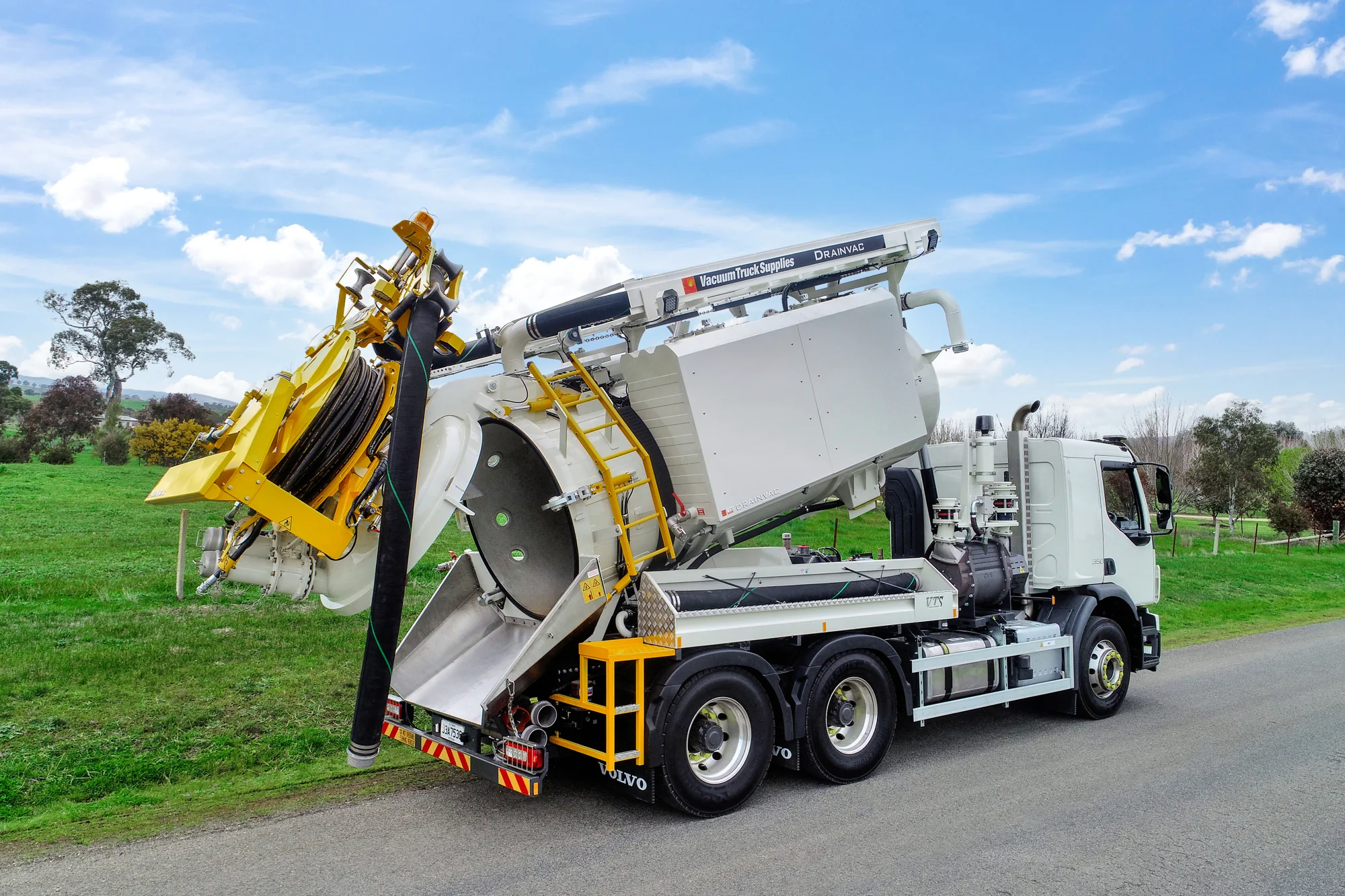

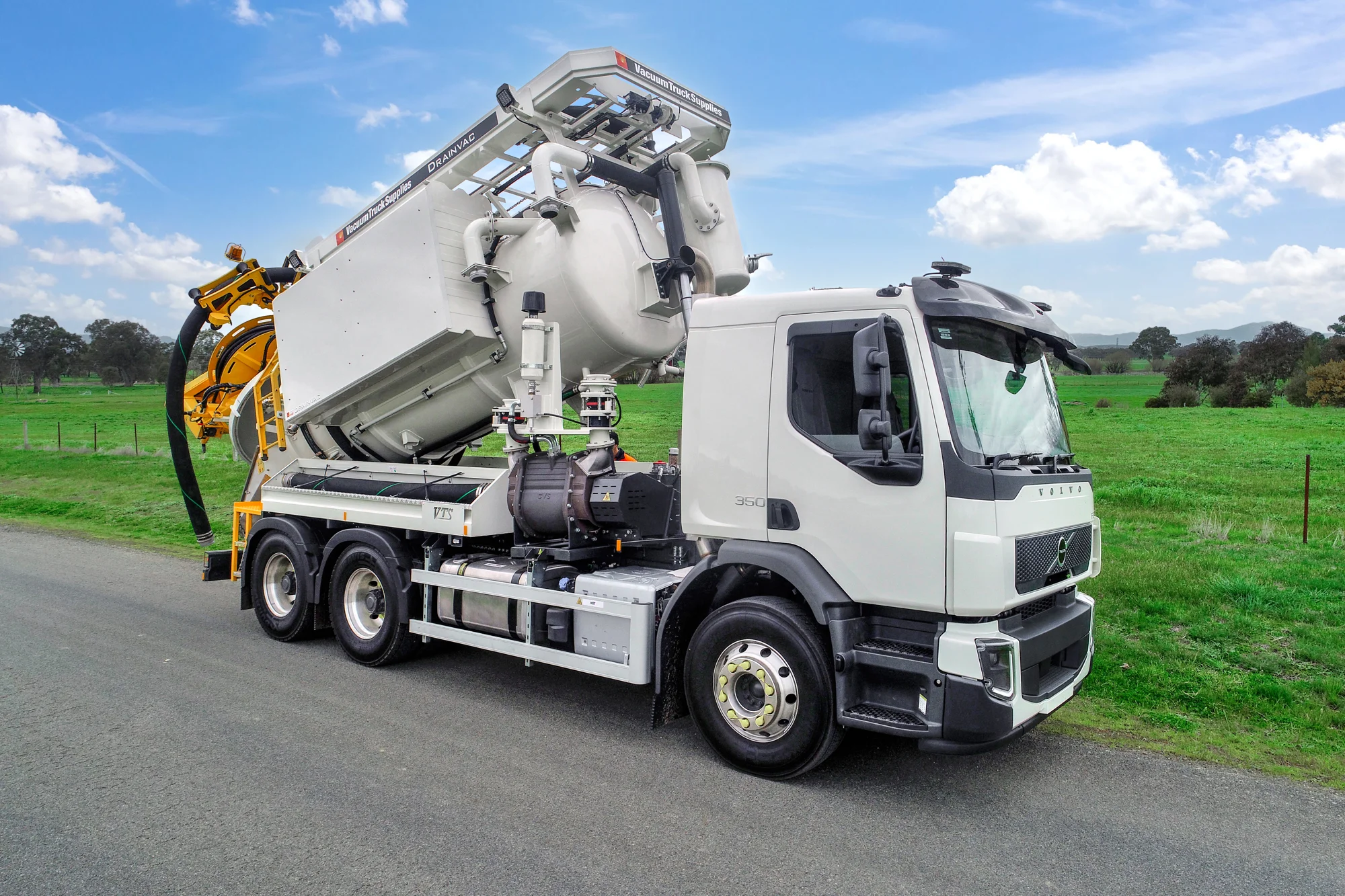

    Hydraulic Tipping and Fully Hydraulic Rear Door
    UDOR NDD pump 17LPM/300BAR, 13mm 30m SS spring return hose reel
    Stainless steel separator and manifolding
    Molex fully rebuildable ball valves
    Wireless remote control with manual control backup. Simplified control system: no computers, no worries!

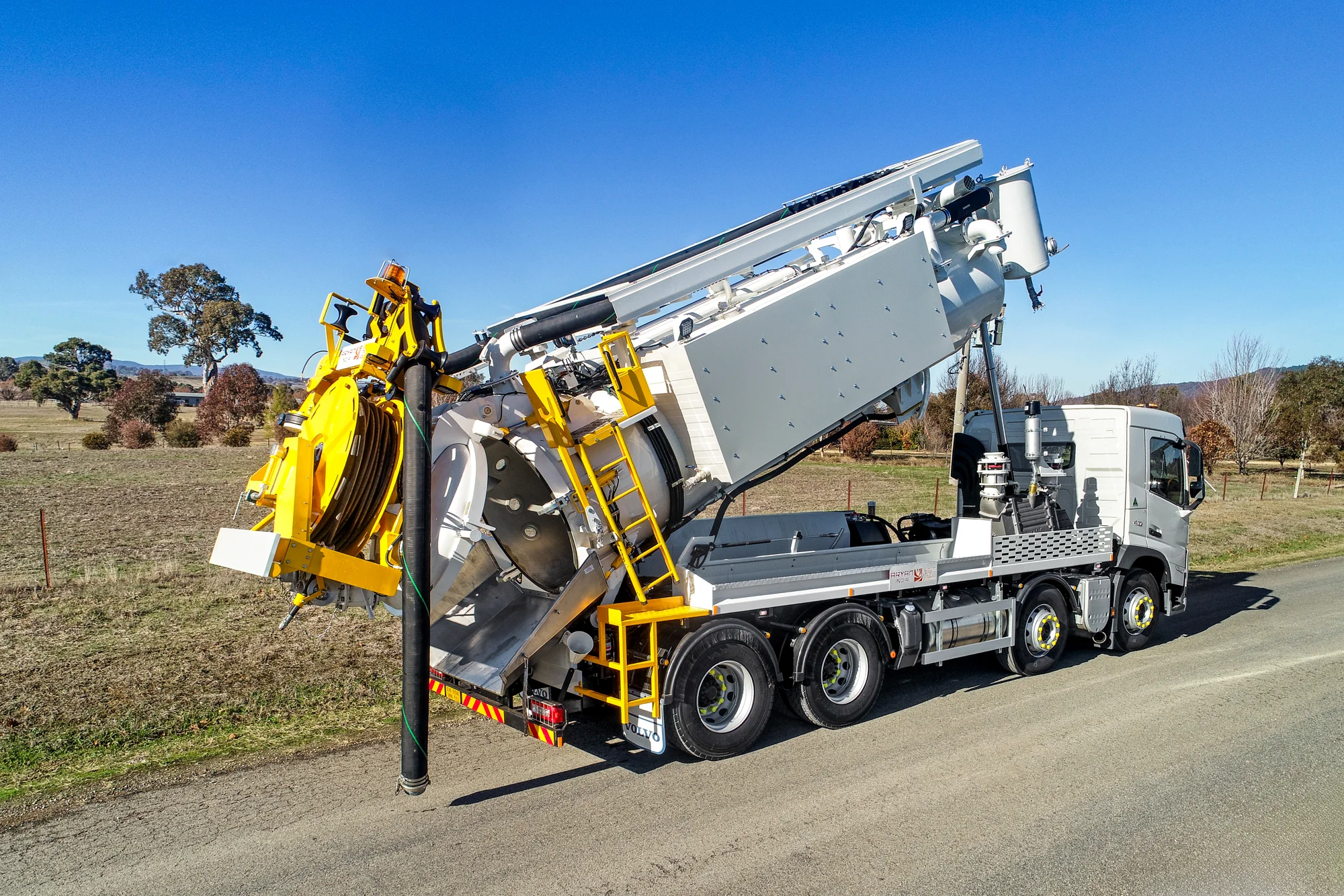

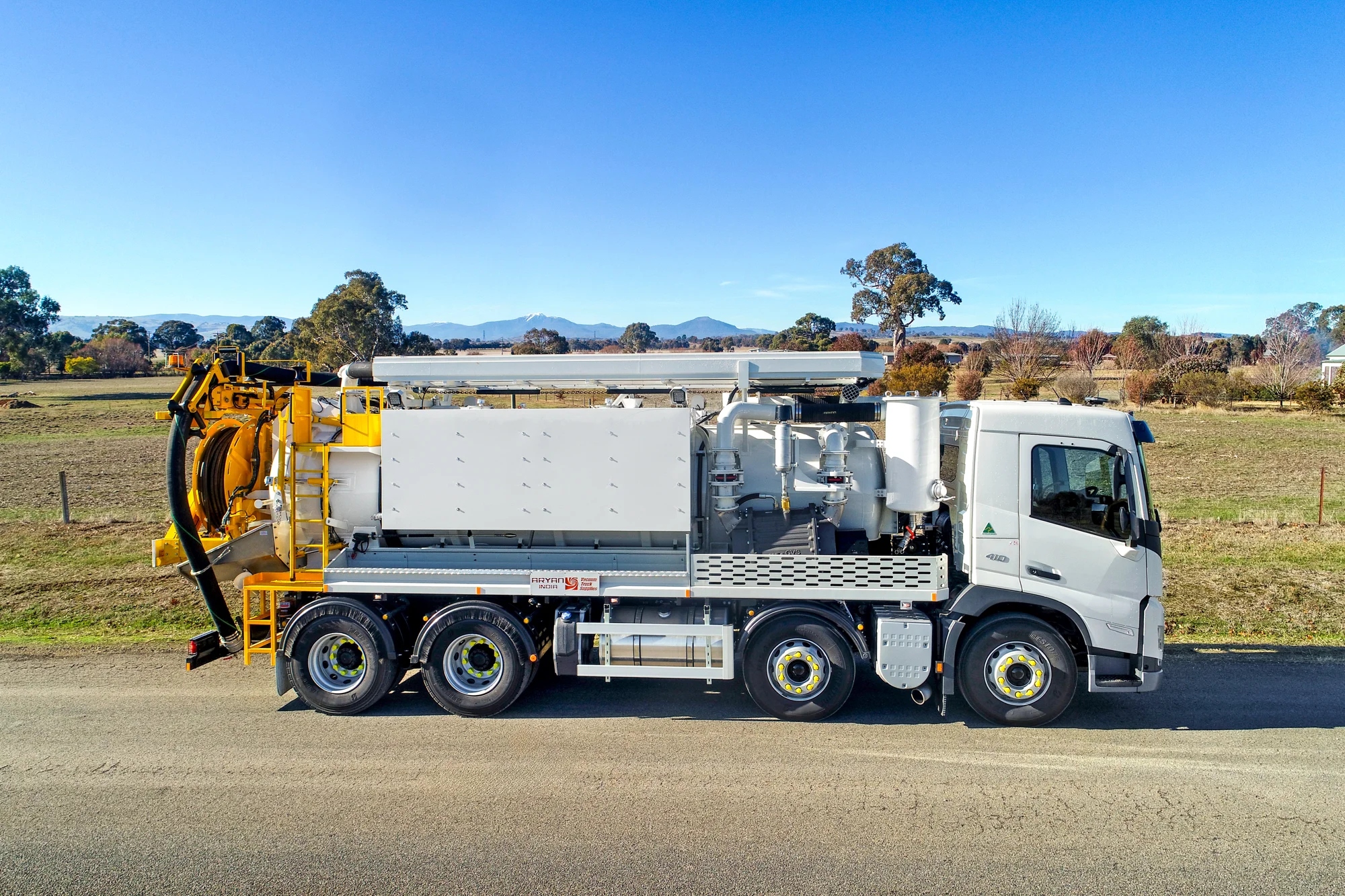

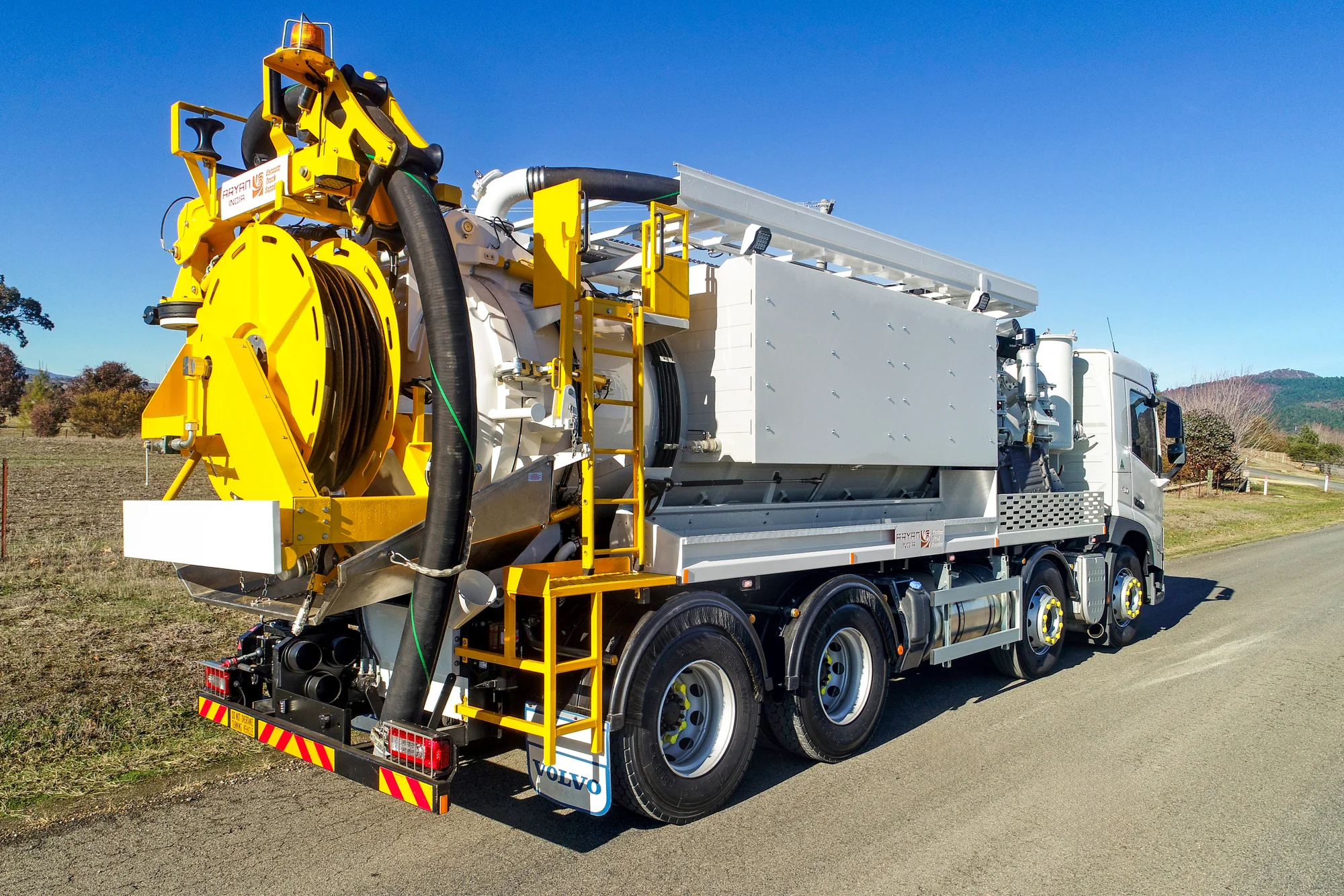

  • DrainVac 8000
    8,000 Sludge – 4,000L Water
    8x4
    Volvo FM 410HP 8x4
    4,000 m3/h - 2,350 CFM CVS liquid ring vacuum pump, hydraulically driven
    Fully hydraulic 150mm cassette style boom
    Pratissoli Drain cleaning pump 346lpm/170bar, 25mm 180m hydraulic drive hose reel.
    5mm 304 stainless steel

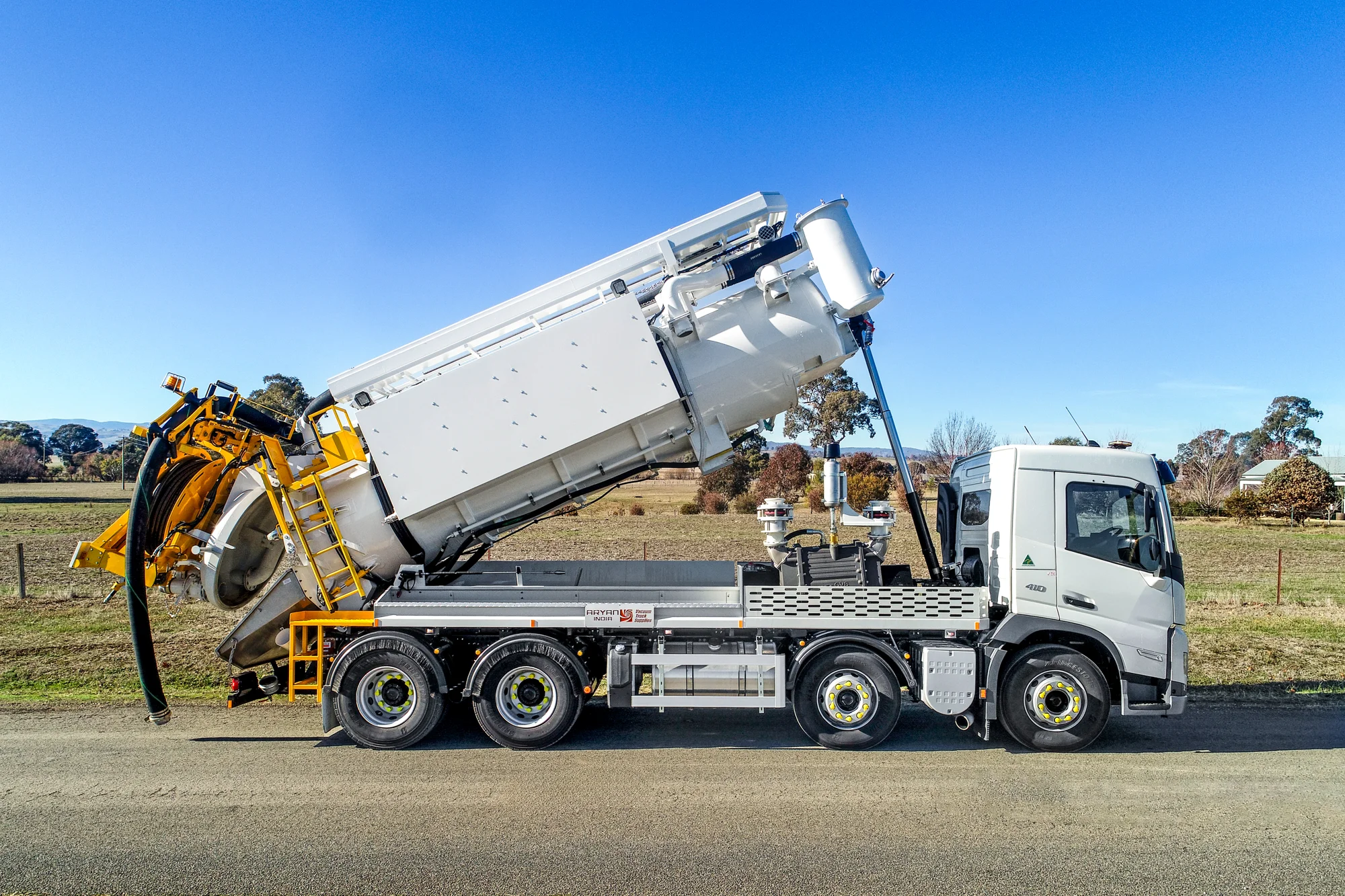

    Hydraulic Tipping and Fully Hydraulic Rear Door
    UDOR NDD pump 17LPM/300BAR, 13mm 30m SS spring return hose reel
    Stainless steel separator and manifolding
    Molex fully rebuildable ball valves
    Wireless remote control with manual control backup. Simplified control system: no computers, no worries!
